Application products: US Eyre (EXAIR) super air knife
Application target: US EXAIR super air knife to clean the glass cutter slag!!
Problems encountered by customers:
A glass-processing company has always had a problem that plagues them, that is, the cleaning of glass fragments produced by the cutting machine after cutting the glass. After the glass is cut, the debris will fall off the edge of the glass. These pieces of glass fall onto the conveyor belt, causing scratches on the glass surface of the conveyor belt. Therefore, they have been seeking a non-contact debris cleaning tool, and the United States is absolutely the best choice.
American Exair Super Air Knife

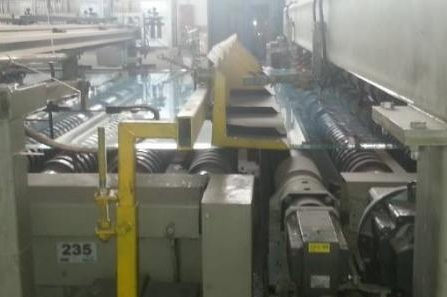

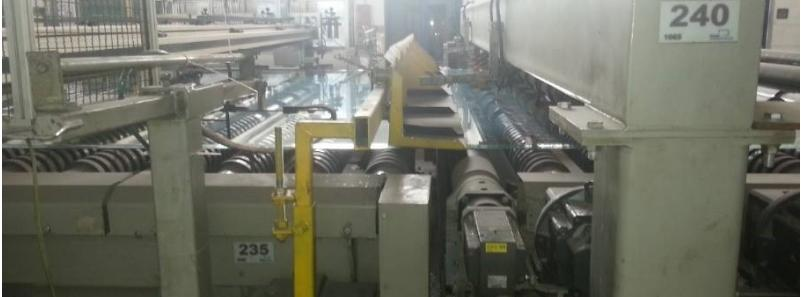

They are cutting a piece of glass about 4M wide. The glass is transferred to the cutting machine to cut the large glass into glass of different sizes to reduce waste. When the cutting machine starts working, in order to protect the safety of the operator, the protection device will be closed, and the operation will be automatically opened after the operation is completed, and the marked glass will be sent out from another channel. When the glass is sent out, the crushing device will knock the lined glass into a piece of glass window. They must leave those pieces of debris inside the cutter to ensure that there are no debris on the surface of the glass.

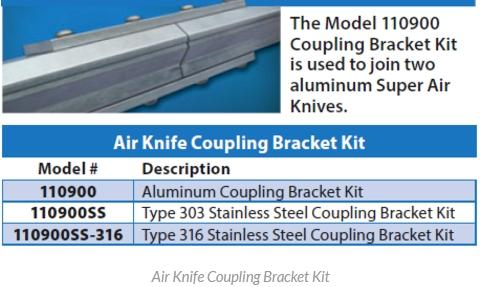

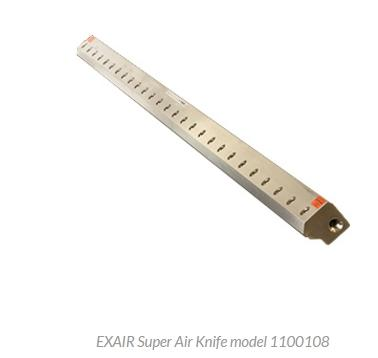

American I Love has always been the leader of the longest air knife in the industrial field. The United States I love super air knife single longest air knife can achieve 2.7M. However, for this application we have to take special treatment because its length of glass is almost 4M. The United States has developed a solution for this case, recommending the Model 110900 Super Air Knife Splicing Kit. The kit can be used to splicing extended super air knives. That is, the super air knife port is connected to the port to obtain a new length of air knife. Therefore, we recommend the model 110072, the 1.83M aluminum super air knife and the 110084, 2.13M aluminum super air knife. The two super air knives are spliced to get the length required by the customer. This user has received a good effect after using the American Super Air Knife. The angle of the air knife outlet direction is adjusted to blow the air with a uniform laminar air flow. This non-contact debris cleaning method avoids the glass shattering. The slag scratches the finished product and achieves a good cleaning effect.
The solution recommended by the United States (EXAIR):
The United States I love super air knife is currently the most efficient air knife on the market. It can amplify the air flow by 40 times, greatly reducing the consumption of compressed air, saving you every penny. The United States has always stood on the customer's point of view to solve problems and solve problems. Our long-standing goal is to provide customers with better services and products, reduce more waste and become more energy efficient. The United States also recommended to install and use the electronic flow controller EFC to this customer. EFC is a compressed air optimized product that uses a photoelectric sensor to control system flow while turning on a compressed air source. It also has a small PLC controller for timing. The recommended model is the 9064-2, which comes with 2 solenoid valves. The photoelectric switch can sense the brightness of the object. For the glass, we must choose another sensing method, and the customer is finally installed on the protection device. When the glass is cut, the protection device is opened and the super air knife will suspend the purging work; when the protection device is closed, the super air knife will be driven. The installation of the EFC has resulted in a significant reduction in the amount of compressed air used.
If you also encounter the surface of an object that needs to be purged, cooled, and dried, American Beauty is the best choice. We will provide you with the most accurate, professional and efficient solution!
ECF - compressed air optimization products
